More Replication Settings

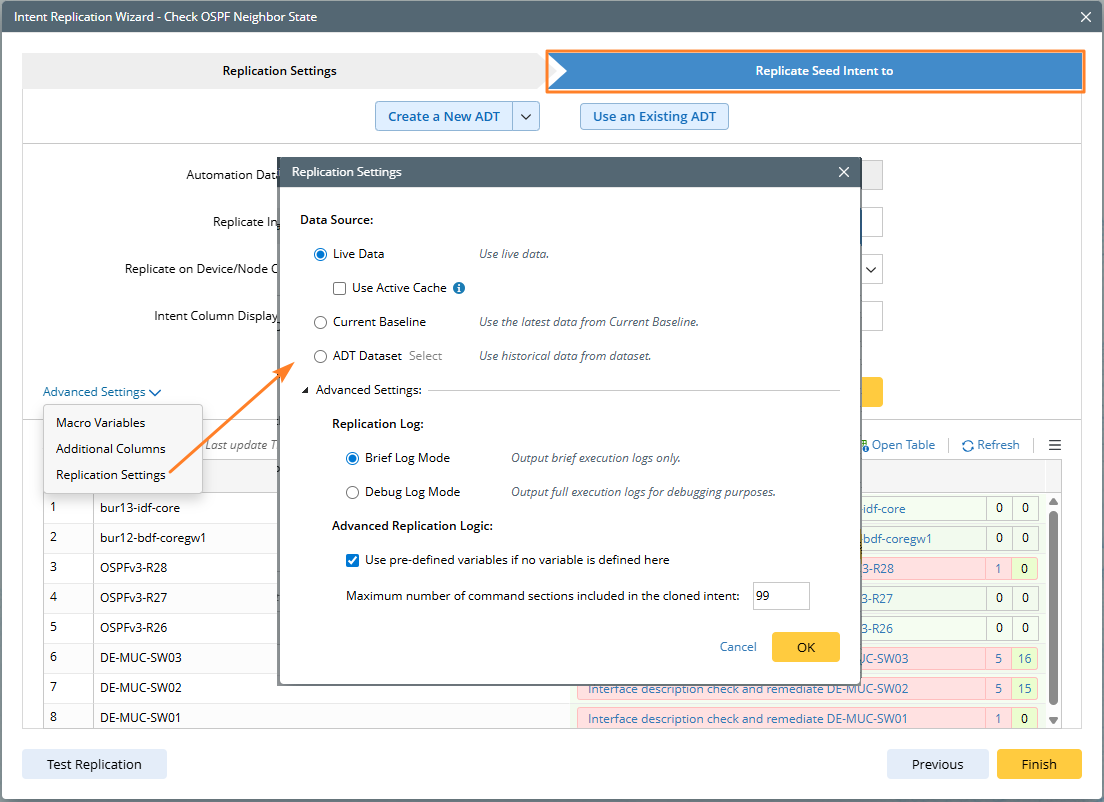

To define more detailed settings for the intent replication, go to Advanced Settings > Replication Settings and define the following parameters:

1. Select one of the following data sources for intent replication.
   1. Live Data: The system will retrieve live data and use the retrieved data for intent replication.
      • Use Active Cache: When this function is enabled, live data retrieval from devices occurs only when cache data is unavailable or outdated. This function aims to safeguard network devices against excessive Telnet/SSH requests.
   2. Current Baseline: Current baseline data will be directly used as data source.
   3. ADT Dataset: ADT dataset is cached CLI/Configure data organized by ADT. Intent replication could source from the historical ADT dataset data.
2. Choose the log type (Brief Log Mode/Debug Log Mode) and advanced replication logic.

Note: The Use pre-defined variables if no variable is defined here option is unique to Path-based Replication.

See Also:

• Intent Replication Logic Settings
