Diagnosis Tree

The diagnosis tree has two modes:

• Diagnosis Tree (Pre-Execution): It can well reflect the logic of the diagnosis and the troubleshooting design.

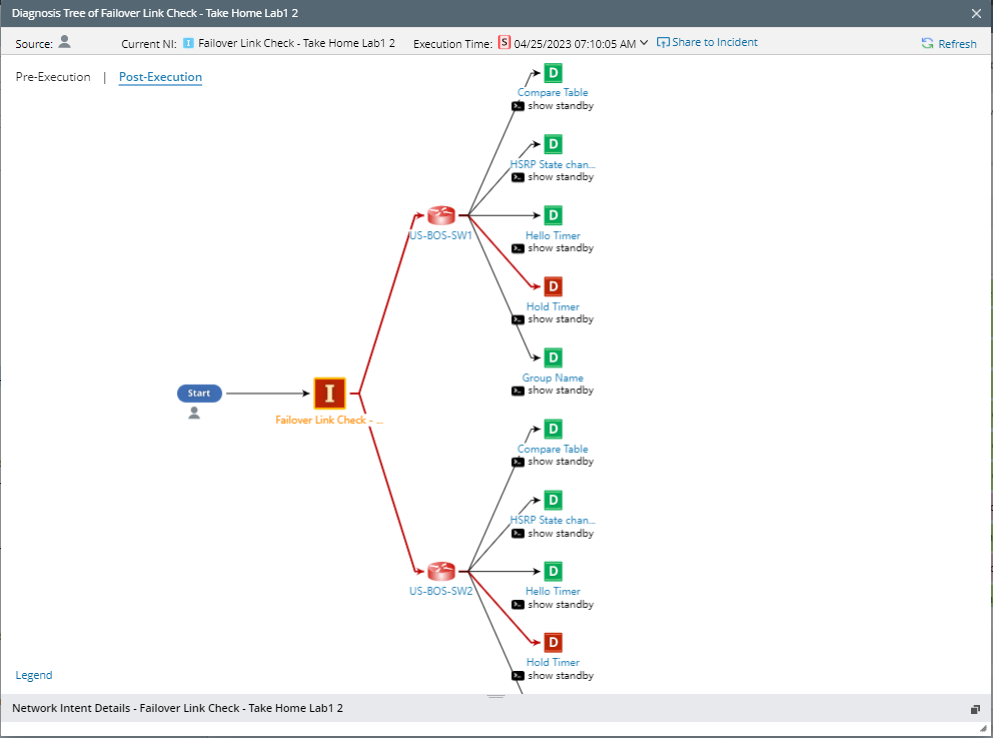

• Diagnosis Tree (Post-Execution): Diagnosis Tree (Post-Execution) shows the execution status of follow-up diagnosis based on the designed Diagnosis Tree (Pre-Execution).
