Comparing After and Before

To verify whether the network changes go as expected, you can use the Compare node to validate the network differences after and before the network change.

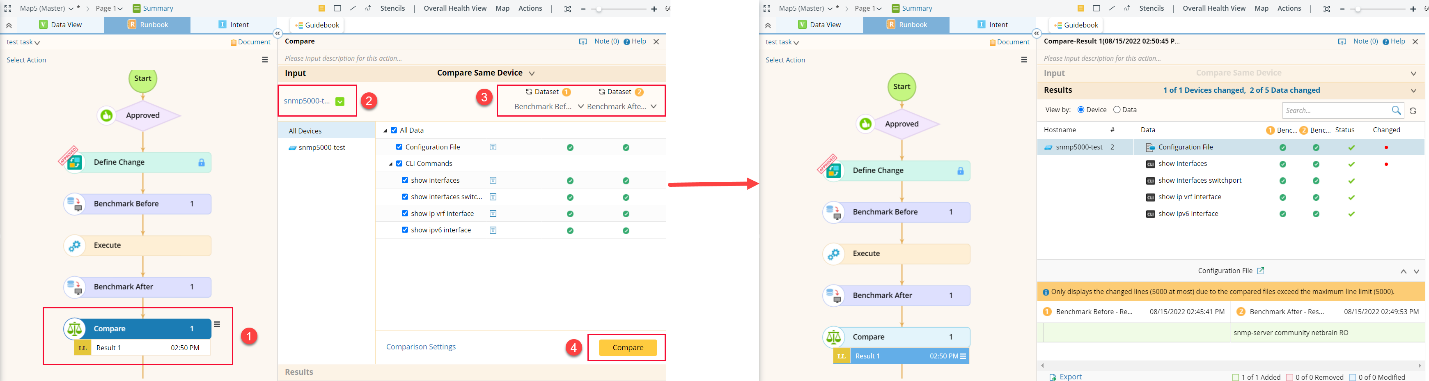

1. Click the Compare node in the runbook.
2. In the Compare pane, click the  icon to select the target devices. By default, all devices on the map page are selected.
3. Select the results of Benchmark After and Benchmark Before respectively in the Dataset1 and Dataset2 fields.




4. Click Compare. For more details on how to view comparison results, see Comparing Data on the Same Device.
