Search for Paths

1. Enter one of the following search terms in the search bar:

• Path name, application name
• Source, destination
• IP address or hostname of hop device

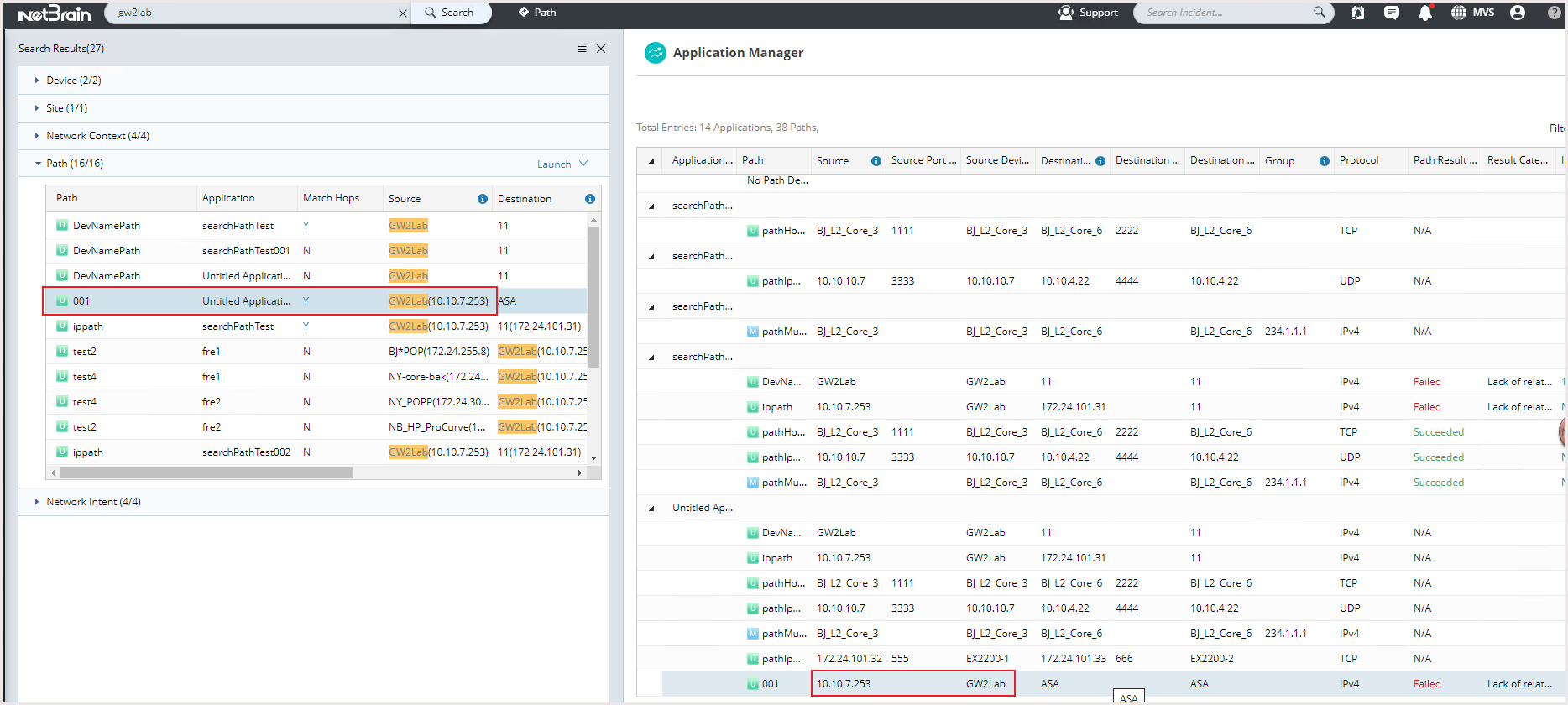

• Note: When an IP address is entered in the source or destination field, you can perform a search using the associated device name as long as the IP address corresponds to a device within the domain.

2. Press the Enter key on your keyboard to start searching. The search results are displayed with the matched keyword highlighted.

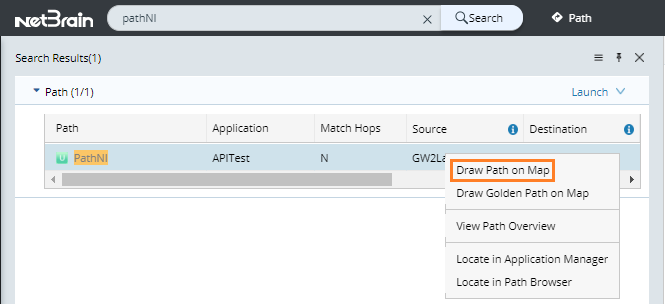

3. Right-click the target path entry and then select Draw Path on Map.



   Note: You can also hover over the path in the IntelliSense and click Map to map the path directly.

   Note: If the path has not been calculated, the map will be blank.

See also:

• A/B Path
