View VLAN Group for a specific device

VLAN Group is an L2 Broadcast Domain, including L3 IP Interface, L2 Switchport, and End Point (End System and MAC Device). It is often associated with a business unit, for example, Dev VLAN, QA VLAN, etc. The IP addresses in a VLAN Group should not be duplicated except HA(High Availability) and FHRP(First Hop Redundancy Protocol).

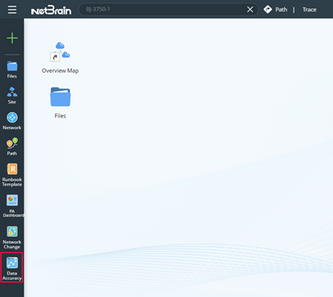

1.Click Data Accuracy Wizard on the left Menu Bar from the Desktop.

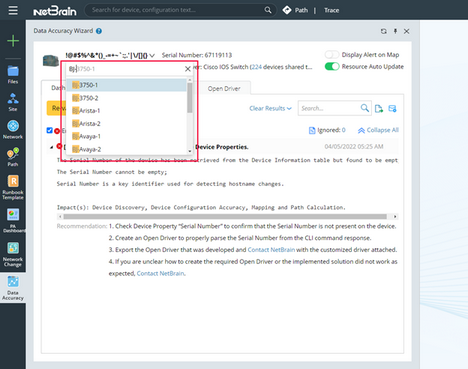

2.Click  icon right after the Device Name, and search for the device you want to view.

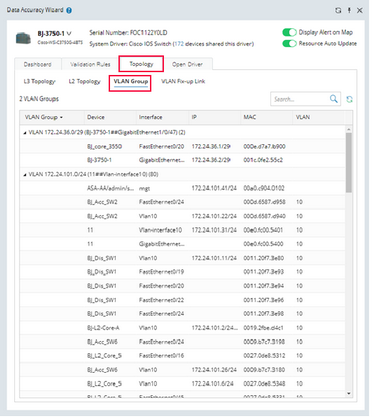

3.Click on Topology tab and then click on VLAN Group.
