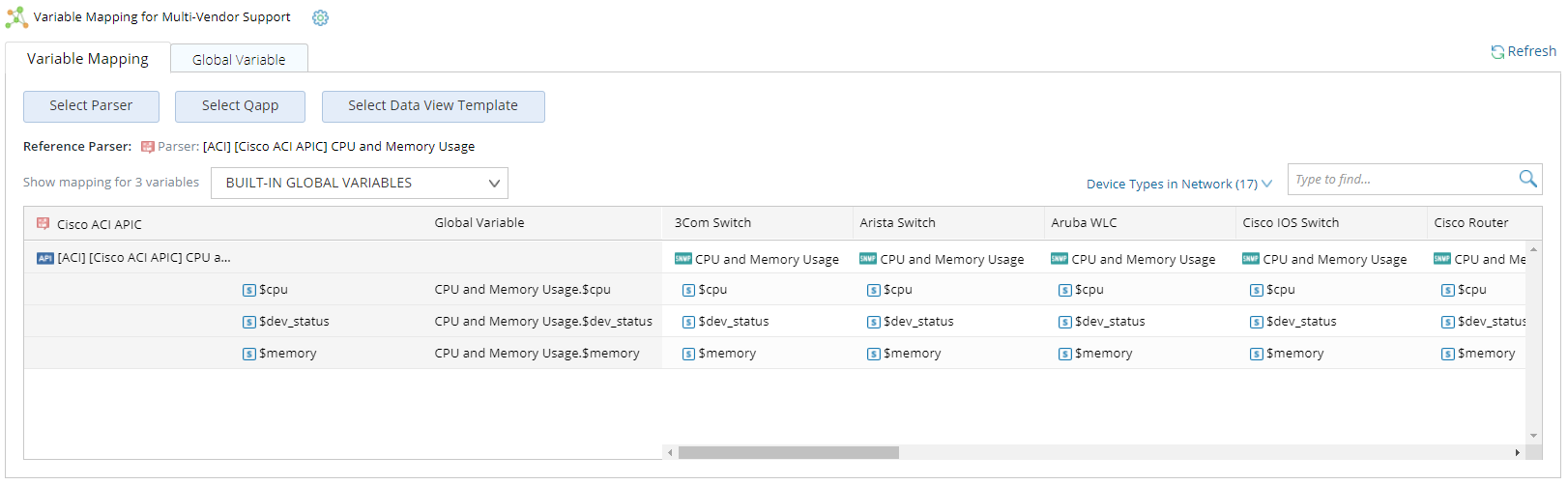

The system provides three ways to initiate the view of variable mappings. In essence, it is to view variable mappings by parsers.

▪Select Parser

▪Select Qapp (referencing parsers)

▪Select Data View Template (referencing parsers)

The view of variable mappings can be toggled between built-in global variables and customized global variables. Built-in variables are predefined and maintained by NetBrain team, and can be saved as customized variables.



Note: The system allows a single parser variable to appear in each category only once at most.

Note: As long as a parser variable belongs to the customized category, the system will only look up variable mappings in the customized category; if a parser variable only belongs to the built-in category, the system will only look up variable mappings in the built-in category.
