Note: The Service Monitor Agent must be installed on the servers that you want to monitor. If you deploy more than one system across multiple data centers, you will have more than one Service Monitor portal.

To monitor server and service metrics:

1.In the System Management page, click Operations > Service Monitor from the quick access toolbar.

2.Enter the username and password, and click Log In.

Note: The user account of the service monitor is different from the user account of the NetworkBrain IE system. The default username/password is admin/admin.

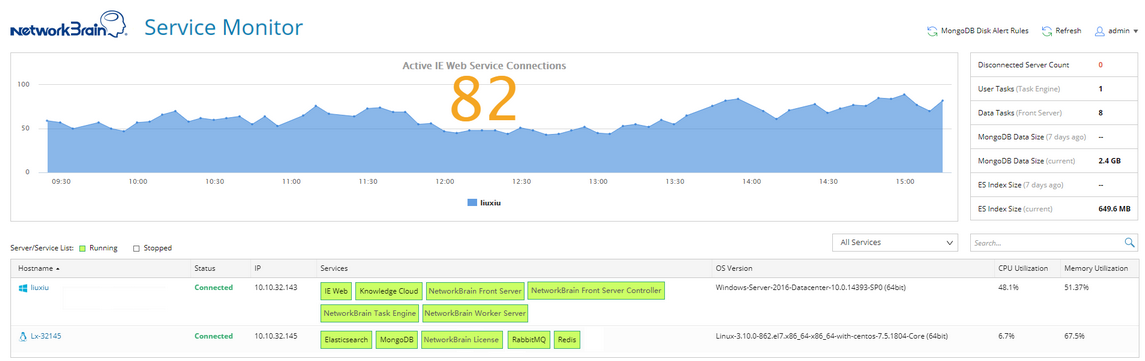

3.On the Home Page, you can monitor key server metrics, server connectivity, resource utilization, service status and so on.

4.Customize the conditions for when to send out alert emails and take more actions for low disk space on MongoDB by clicking MongoDB Disk Alert Rules. See Managing MongoDB Disk Alert Rules for more details.

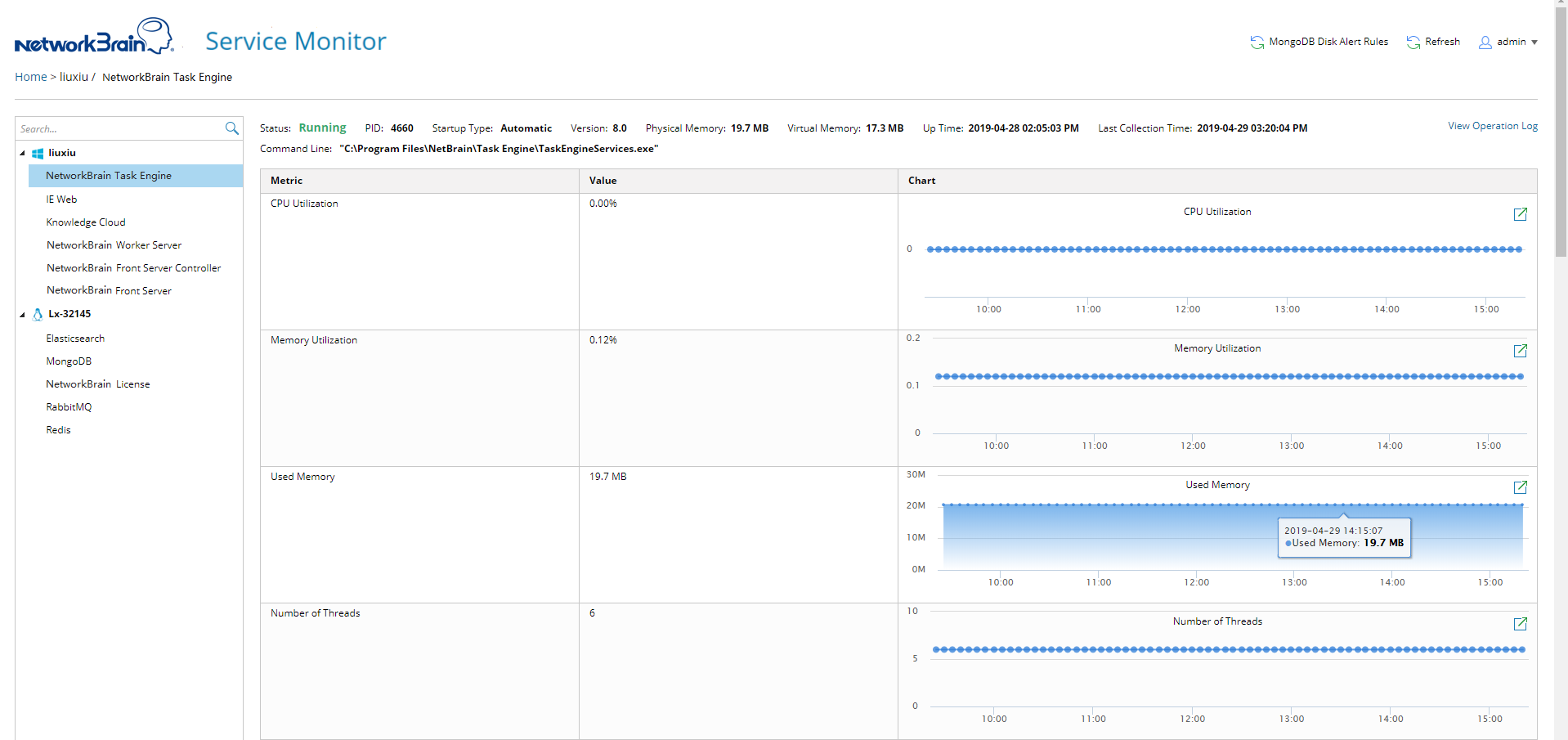

5.To check detailed metrics for a specific service, click the service name to view details. See Service Metrics for more reference. By default, the system collects metric data every 5 minutes and refresh the page every 5 minutes to display the latest metric data.

See also:

▪Cleaning Aged Data
