Visualize ThousandEyes Instant Test Data with DVT

Using publicly available ThousandEyes API, NetworkBrain has created an integration compatible with NetworkBrain Integration 8.0 (or newer) that enables NetworkBrain users to overlay ThousandEyes instant test results data on NetworkBrain maps.

With this integration, NetworkBrain first initiates an instant test from a specified ThousandEyes test agent to network devices. When the test results come back, NetworkBrain overlay the following extended information as attributes.

1. Average Latency
2. Maximum Latency
3. Minimum Latency
4. Loss
5. Jitter
6. Test Agent Id
7. Test Agent Name
8. Created Date

Note: The instant Test is issued from the selected agent to the NetworkBrain device management IP.

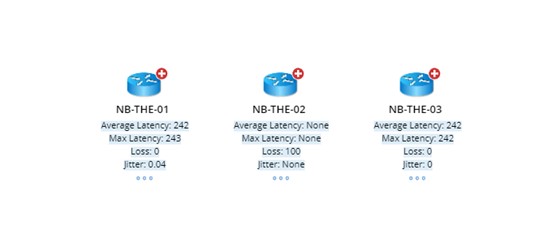

The diagram below shows ThousandEyes instant data overlay on devices.
