View Azure Object Configurations
Basic configuration file is a critical data source to understand the basic configuration and specification of different devices/nodes. It includes one or more APIs data and is also a useful and important way for Public Cloud management and maintenance.
|
Note: The feature has been available since version IE10.1.7. |
Feature Scope
Azure
- Azure VNet Router
- Azure Virtual Network Gateway (VNet, Type: VPN/ExpressRoute)
- Azure Load Balancer
- Azure NAT Gateway
- Azure Firewall
- Azure MSEE
- Azure vHub
- Azure VPN Gateway (vHub)
- Azure Express Route Gateway (vHub)
- Azure Application Gateway
- Azure Private Link End Point
Feature Usage

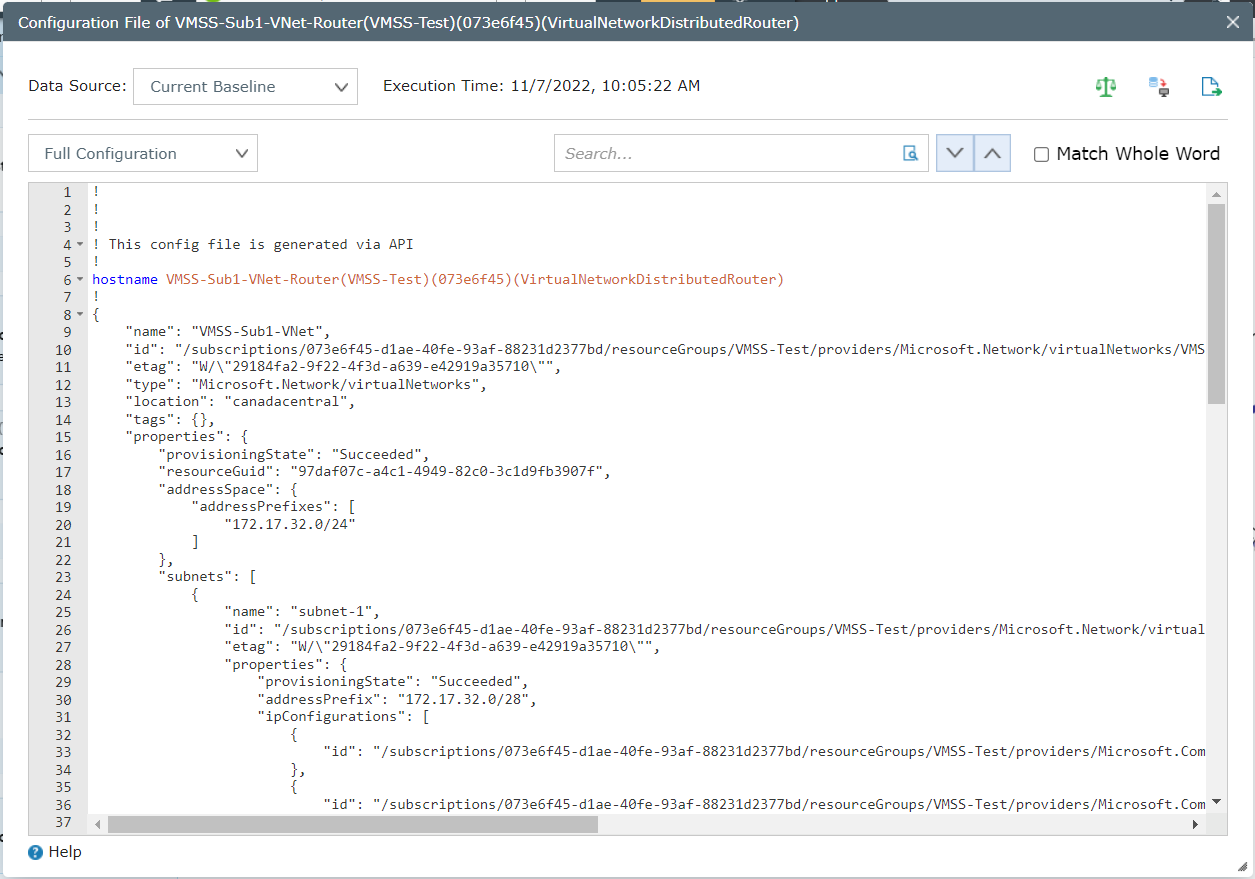

Right-click the device/node on the map, select View Configuration File to open the configuration file. The feature provides compare
, live retrieve
or export
functions by clicking the dedicated icon.
The configuration file can be used for:
- Public Cloud management and maintenance if you need to analyze or monitor the basic key configuration or specifications of the device/node.
- Automation flow to monitor the system health status or troubleshooting procedure.
