Create Collector Pattern and Support LinesByRegex Function

The AI can generate a collector pattern and supports the 'LinesByRegex' function.

  • Configuration: retrieve the configuration.
  • Prompt: parse the numbered access lists and get the same acl number line as one acl config.

Steps:

  1. Create a parser and define the parser name and description.

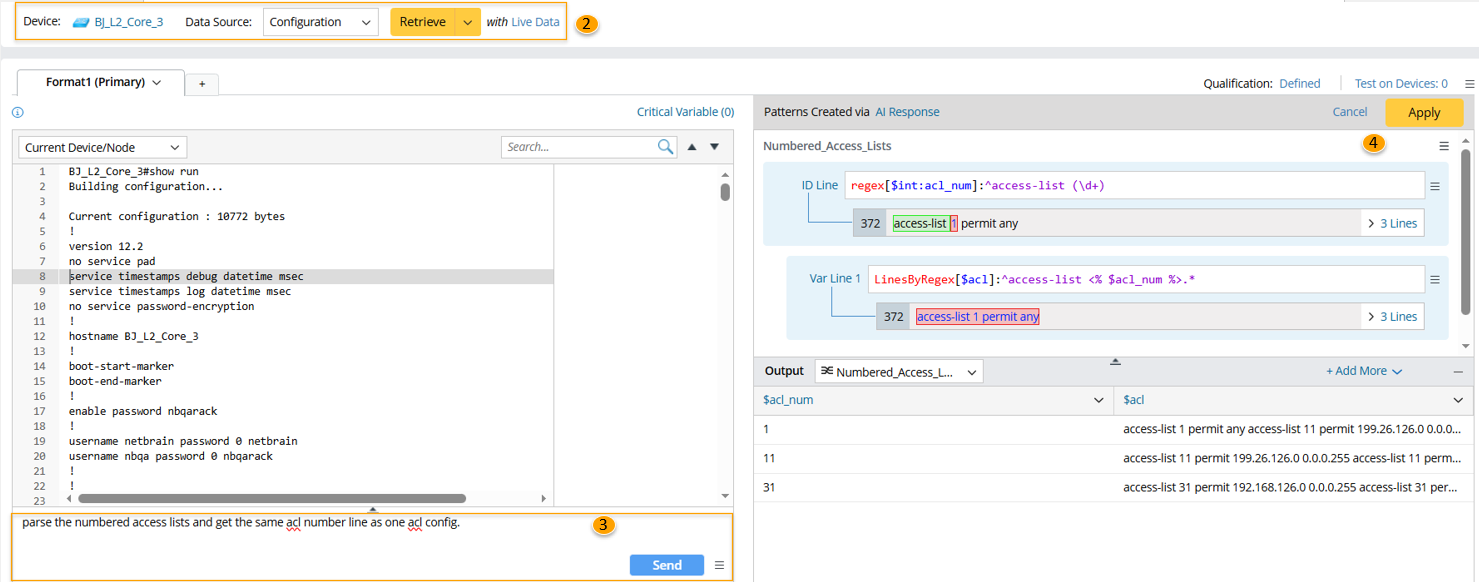

  2. Select device and retrieve the configuration.

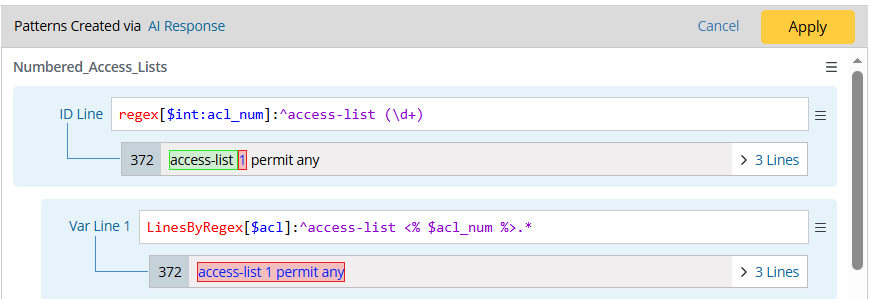

  3. In the Prompt Input Pane, input the prompt "parse the numbered access lists and get the same acl number line as one acl config", then click the Send button. AI creates a collector pattern "Numbered_Access_List" and the LinesByRegex function is used in Var Line 1.

  4. Click the Apply button, the table pattern is saved to the parser.
