View AWS Object Configurations
The basic configuration file is a critical data source for understanding the basic configuration and specification of different devices/nodes. It includes one or more APIs data and is also a useful and important way for Public Cloud management and maintenance.
|
Note: The feature has been available since version IE10.1.7. |
Feature Scope
AWS
- AWS VPC Router
- AWS VPC Endpoint (Type: Gateway/ Interface/GatewayLoadBalancer)
- AWS Transit Gateway
- AWS Internet Gateway
- AWS ELB(ALB/NLB)
- AWS NAT Gateway
- AWS Gateway Endpoint
- AWS Firewall
Feature Usage

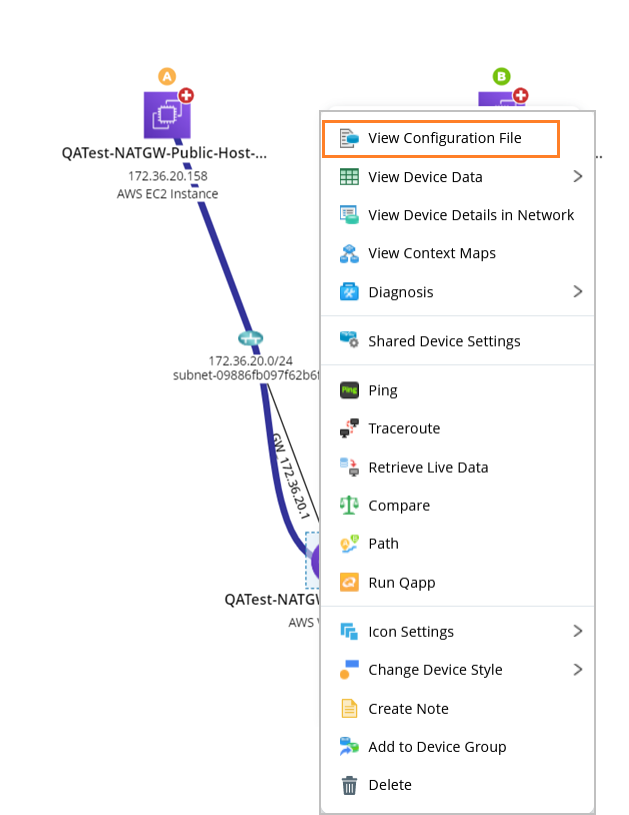

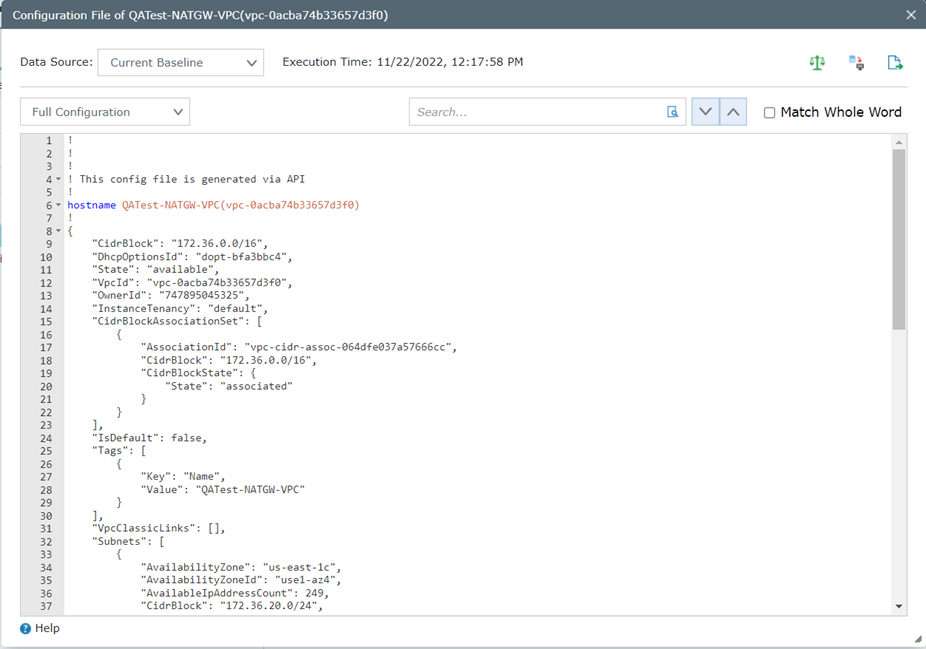

Right-click the device/node on the map, select View Configuration File to open the configuration file. The feature provides compare
, live retrieve
or export
functions by clicking the dedicated icon.
, live retrieve or export functions by clicking the dedicated icon.
The configuration file can be used for:
- Public Cloud management and maintenance if you need to analyze or monitor the basic key configuration or specifications of the device/node.
-
Automation flow to monitor the system health status or troubleshooting procedure.
