Build Base Table Via Node

The system supports more cloud services, ADT is able to manage and visualize more public cloud devices and technologies. The troubleshooting capabilities in ADT have been enhanced with support for Node objects. For example, seed intents can replicate intents on both traditional devices and logic nodes within the ADT Node column, enabling more effective network issue diagnosis.

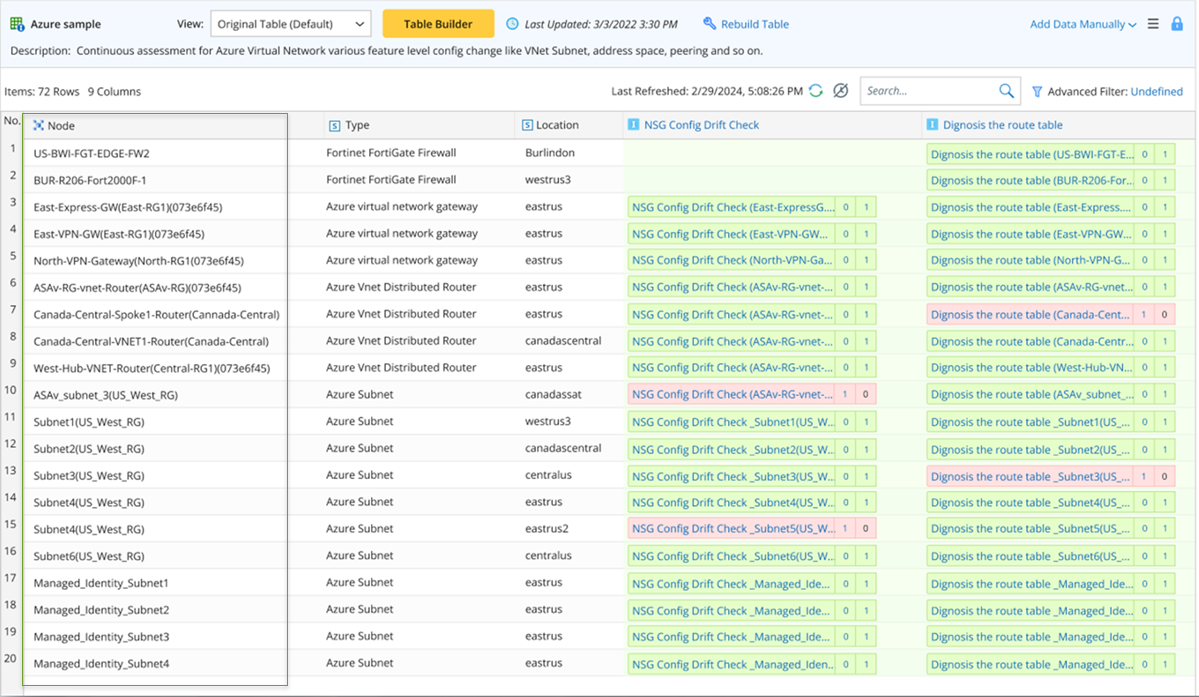

The following is a sample ADT built with logic nodes.

To support intent-based cloud automation, it is essential to display and process logic node data within ADT. The following methods re di:

Build Base Table via Node in Selected Group: Enables populating Node properties of the nodes in node group into ADT.
Build Base Table with Node via Dynamic Search: Enables populating Node properties into ADT.
Build Base Table via Node of Pre-Decoded Intent Template: Allows building ADT using decoded nodes in node group and their parsed data.

Build Base Table via Device of Pre-decoded Intent Template Build Base Table via Node in Selected Group
