View Golden Intent Pane
View Feature Instance and Member Intent

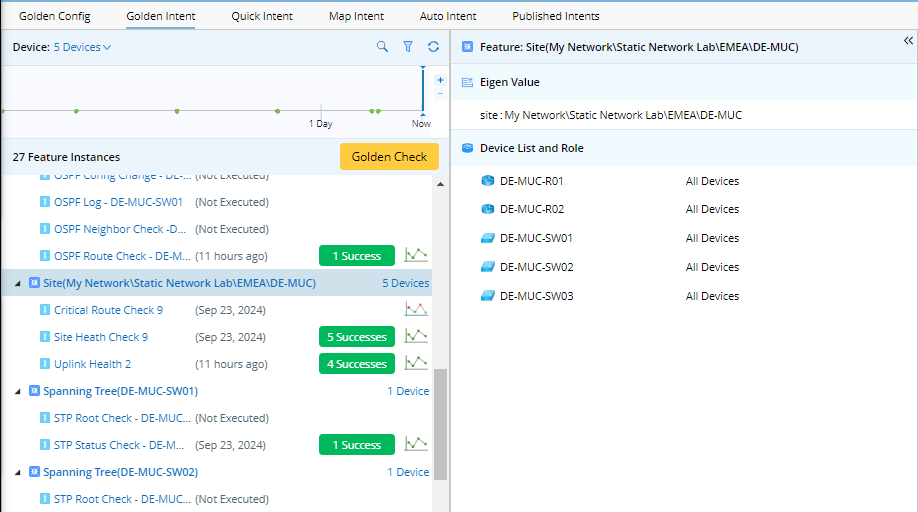

You can click a feature instance name for detailed information on the right pane.
- List every eigen variable and its value.
- List every related device and its roles. You can click the
icon to add the device to the map if it’s not on a map.

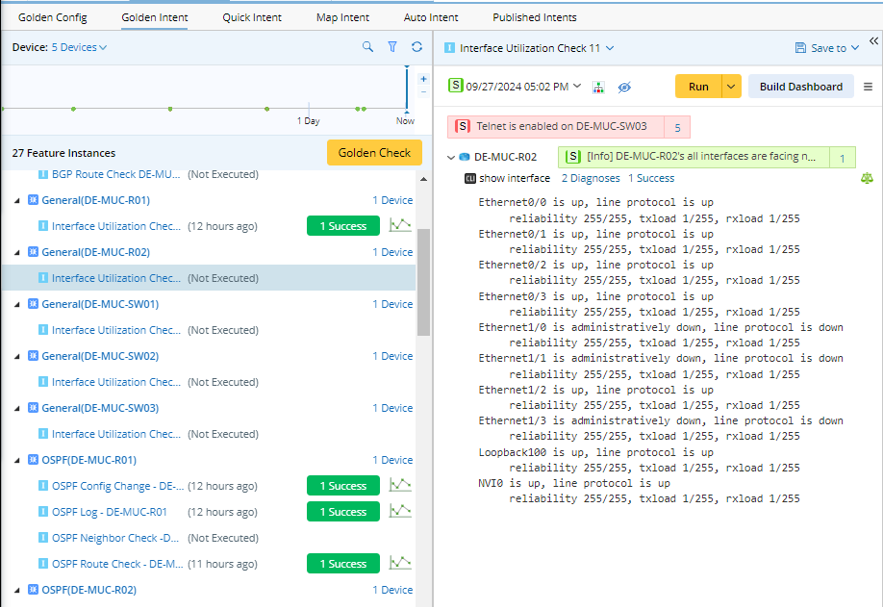

Click the member intent name to do further operations on the right pane.
- Run the intent and see the execution results.
- Open the output map.
- Build Dashboard.
You can do more on the left Feature/Intent pane:
- Hover on intent, the Run button is displayed for you to directly run the current intent.

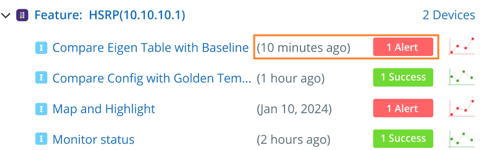

- The time after the intent shows the time of the closest run to the vertical line, and the count of alerts/successes for that run is also displayed.
- Hovering on an intent will display the absolute time.

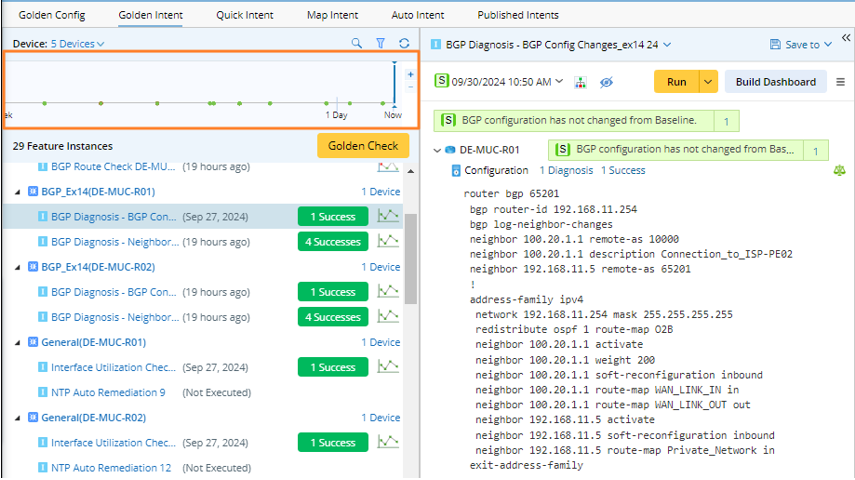

View History Results by Timeline
The timeline reflects the actual execution time of the member intents in the left pane. When this pane is first open, the vertical line is positioned on Now. You can hover on the timeline and a vertical line will move following the mouse. Double-clicking a time point indicates selecting a position.
If there are alerts in the result, the dot is red; otherwise, it is green.
- Clicking and dragging the mouse can move the timeline to see more results.
- The timeline can be zoomed in/out.
- The execution time and status code count listed behind the intent name is the latest execution result of the selected position.

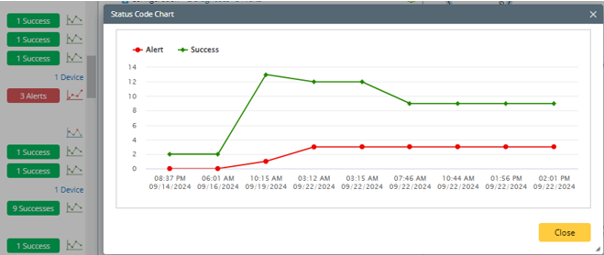

- Click the chart label behind the intent to view the history results of the status code dialog.
- The status code count includes the intent-level and device-level codes.
Golden Check

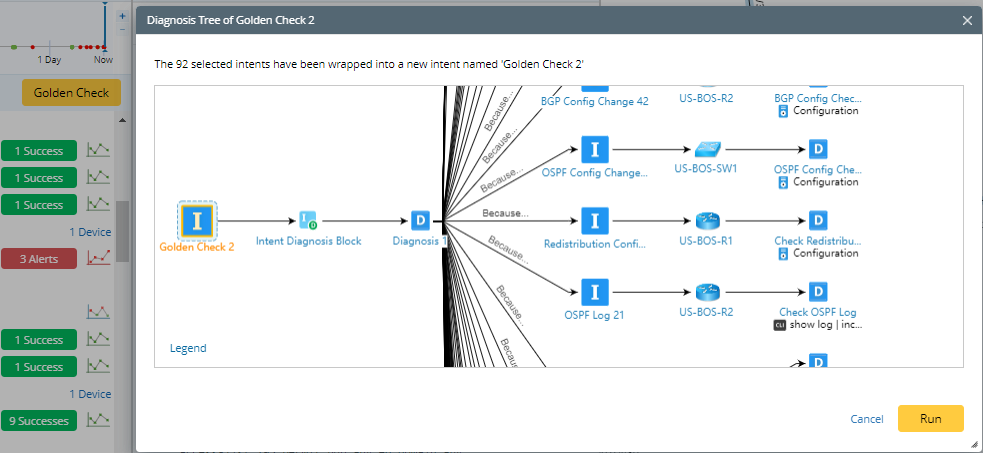

Click Golden Check, and the currently displayed member intents will be encapsulated into a wrapper intent and the diagnosis tree will be displayed. Then clicking Run will execute the golden check.

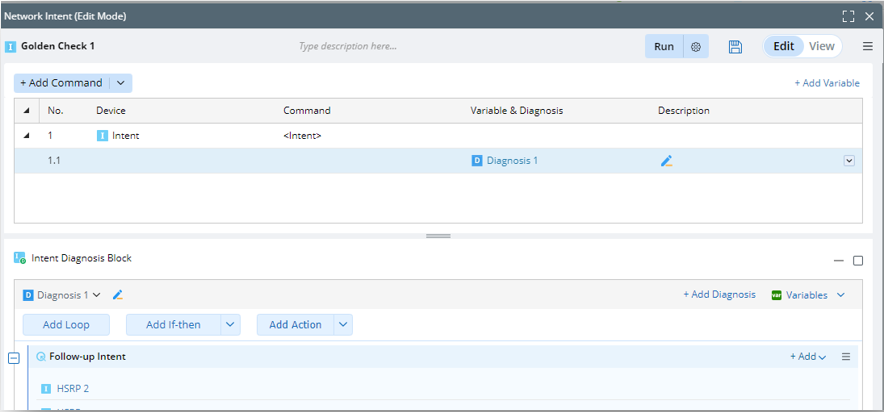

You can select Edit Intent
to enter the wrapper intent definition dialog.

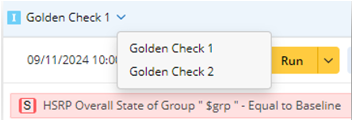

- The wrapper intent will be named ‘Golden Check N’. It can be viewed in the drop-down menu:
- There is an intent diagnosis block that contains a diagnosis.
- The displayed member intents are treated as follow-up intents.
Filter Intents

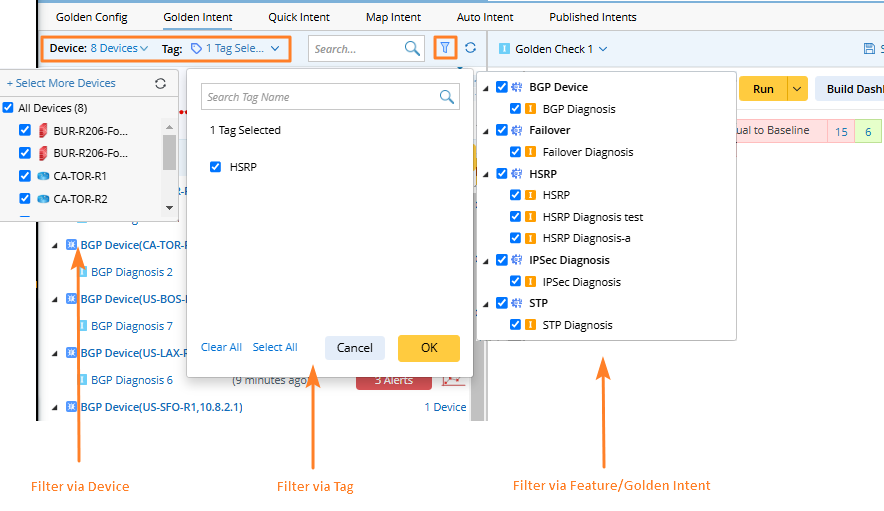

You can filter the intents via the device, automation tag, and feature/golden intent.
- Device: List map devices by default, you can select others. Then the member intents are filtered out.
- Tag: All the automation tags owned by the member intents are listed by default, you can further filter them.
- Feature/Golden Intent: All the features/golden intents owned by the feature instances/member intents are listed by default, you can further filter the intents.

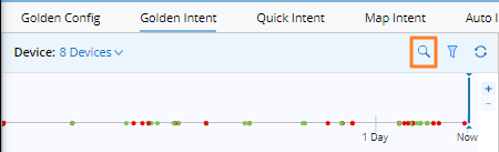

- Search: The feature instance name/member intent name can be searched.
