R12.3-20260213

After Change: Post-Verification

  1. Define nodes for post-verification.
    1. Add an intent node to verify config change.

      1. Add an intent node and change its name to Post - Verify Config Change.
      2. Select the map devices as the target devices.
      3. Select a Vefiy_Config_QoS_ACL intent for this intent node.
      4. Use the Live Data in the setting.
      5. Click Run to run the intent.
      6. View the intent results: Alert. The configuration has been updated and now differs from the baseline.
    2. Add an intent node to verify critical design.

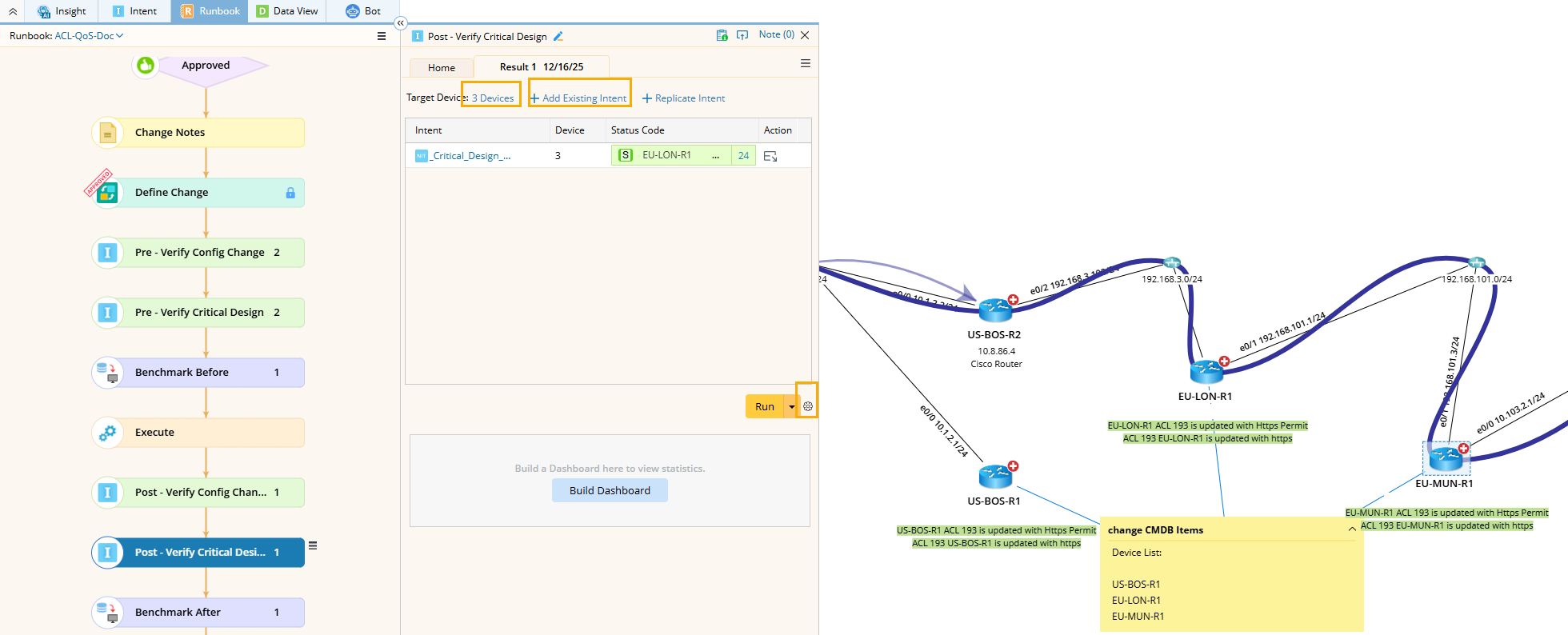

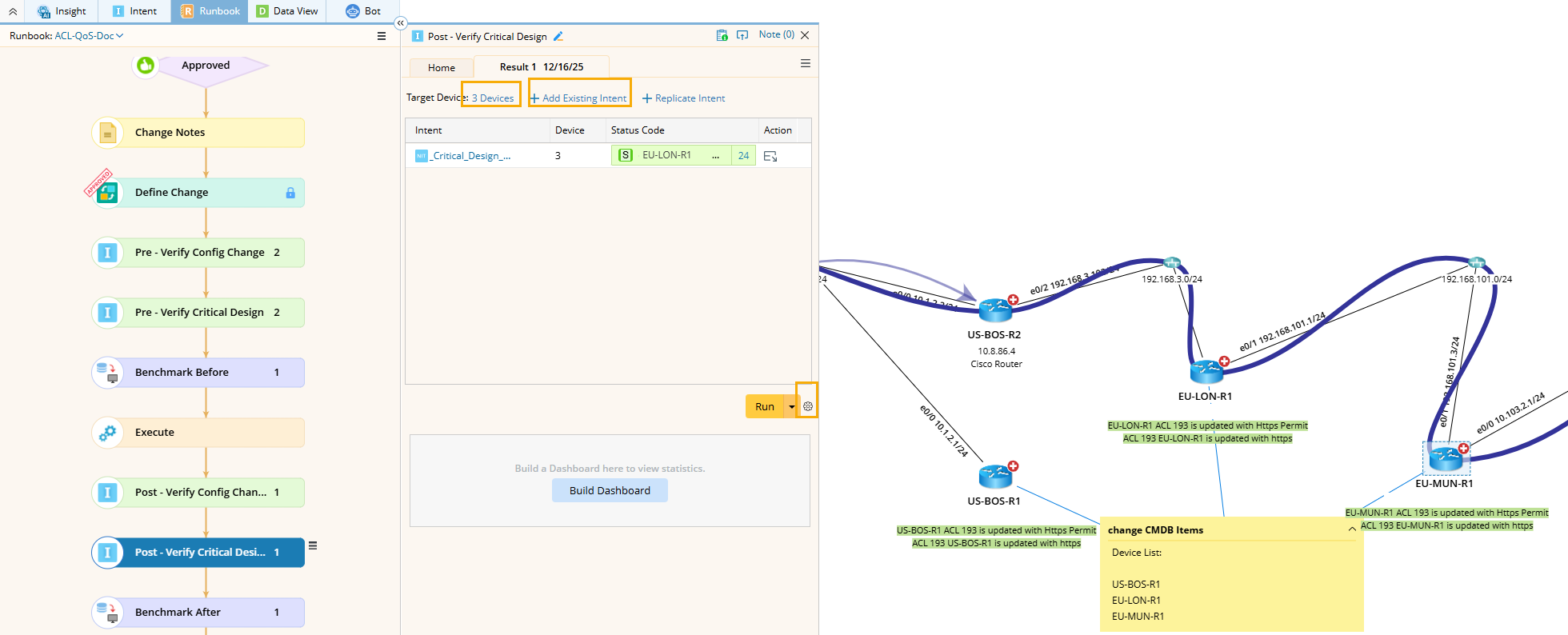

      1. Add an intent and change its name to Post - Verify Critical Design.
      2. Select the map devices as the target devices.
      3. Select a Critical_Design_ACL intent for this intent node.
      4. Use the Live Data in the setting.
      5. Click Run to run the intent.
      6. View the intent results: Success. ACL 193 has been updated to allow HTTPS traffic. The critical design has been successfully implemented.

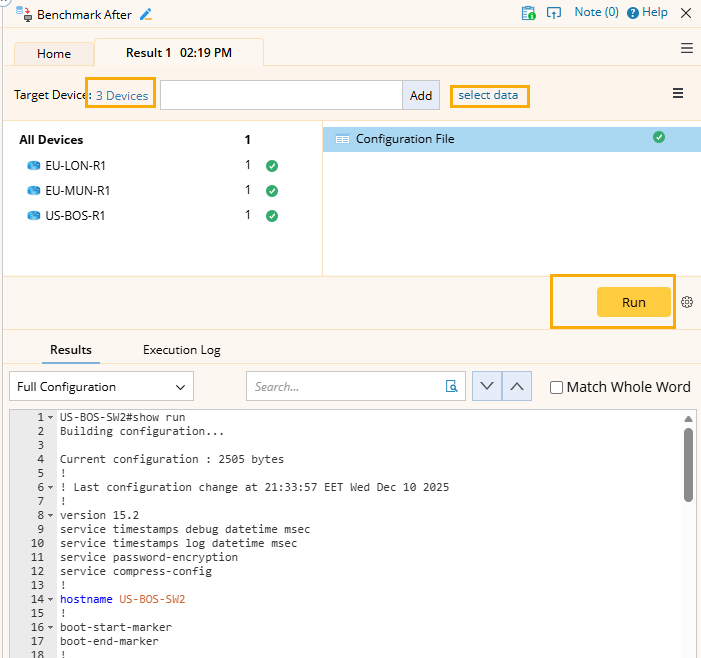

  2. Define the Benchmark After node to collect data after the change is implemented to verify if the change has been deployed successfully.

    1. Select the target devices.
    2. Add CLI command.
    3. Select a data type.
    4. Click Run.
    5. Select a device to view results.

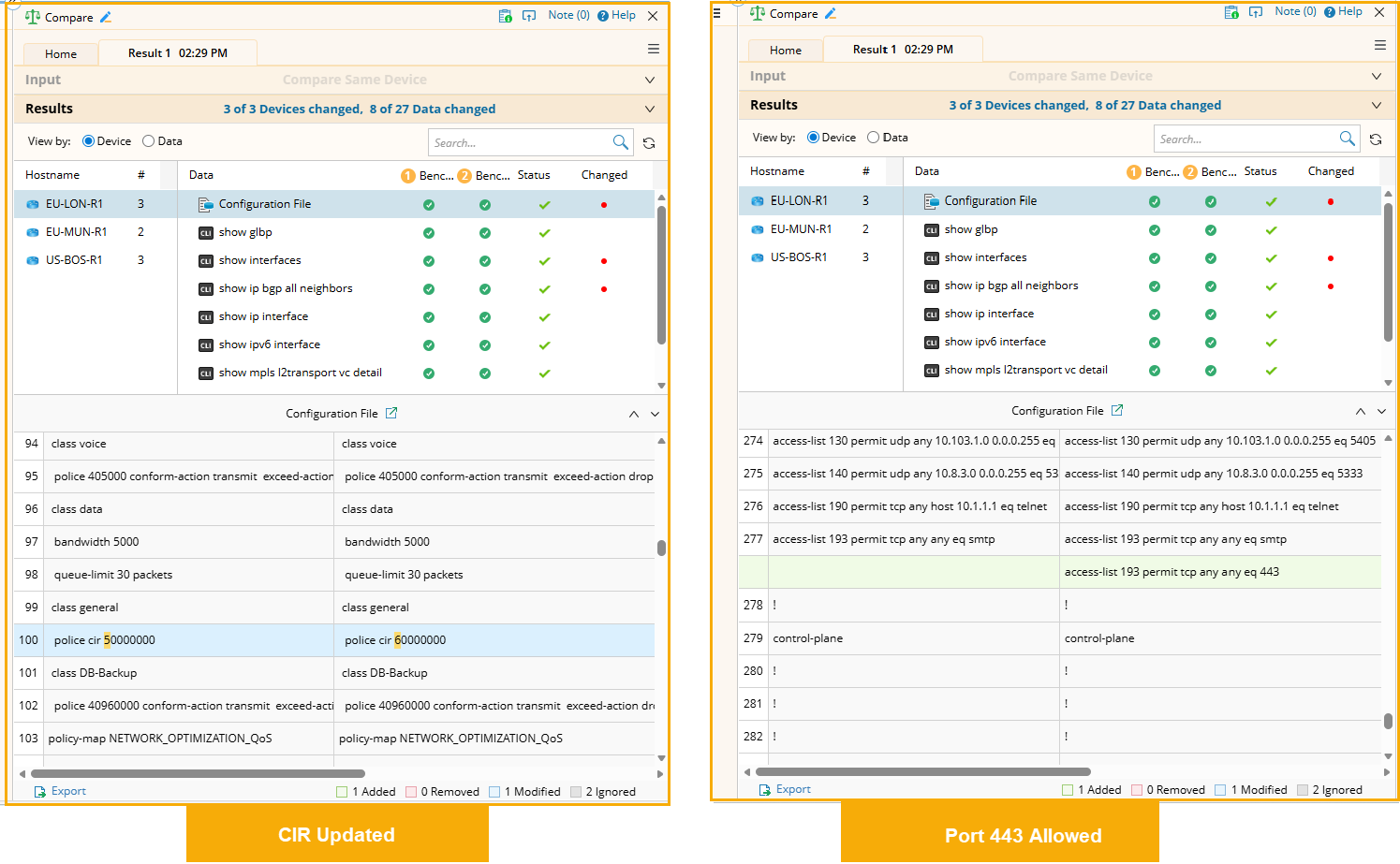

  3. Use the Compare node to compare before-and-after data and confirm whether the change has been successfully implemented.


See also:

Execute Change Application Assurance Module
